Side Position Core Cutting Line

Side Position Core Cutting Line for transformer cores with flexible layout, space-saving design, precise cutting, and efficient material handling.

Get a Quote

Description

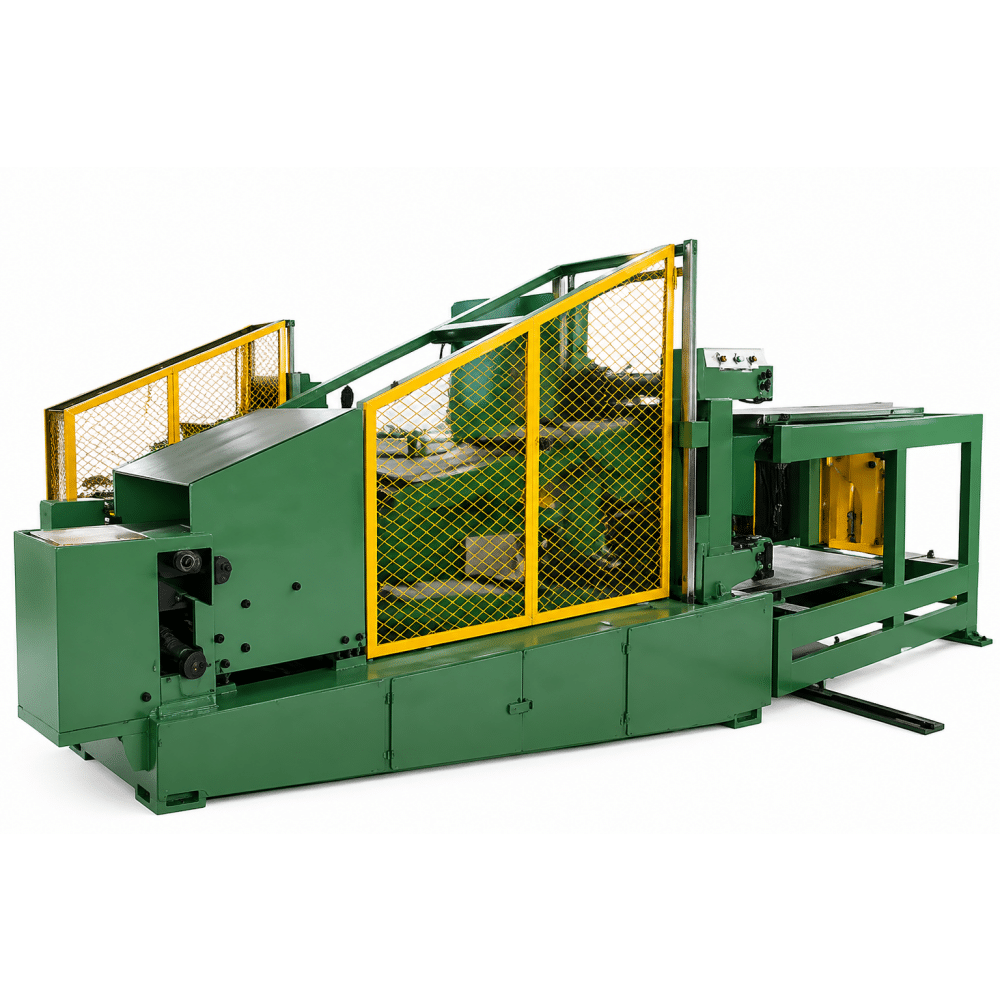

Introduction of Side Position Core Cutting Line

The side position core cutting line adopts a side-position feeding and cutting structure, offering flexibility in workshop layout and material handling. This configuration is particularly suitable for production environments with space limitations, optimizing floor space usage while maintaining cutting precision.

Features

Flexible Layout: Side-position feeding allows for optimized space utilization in production environments.

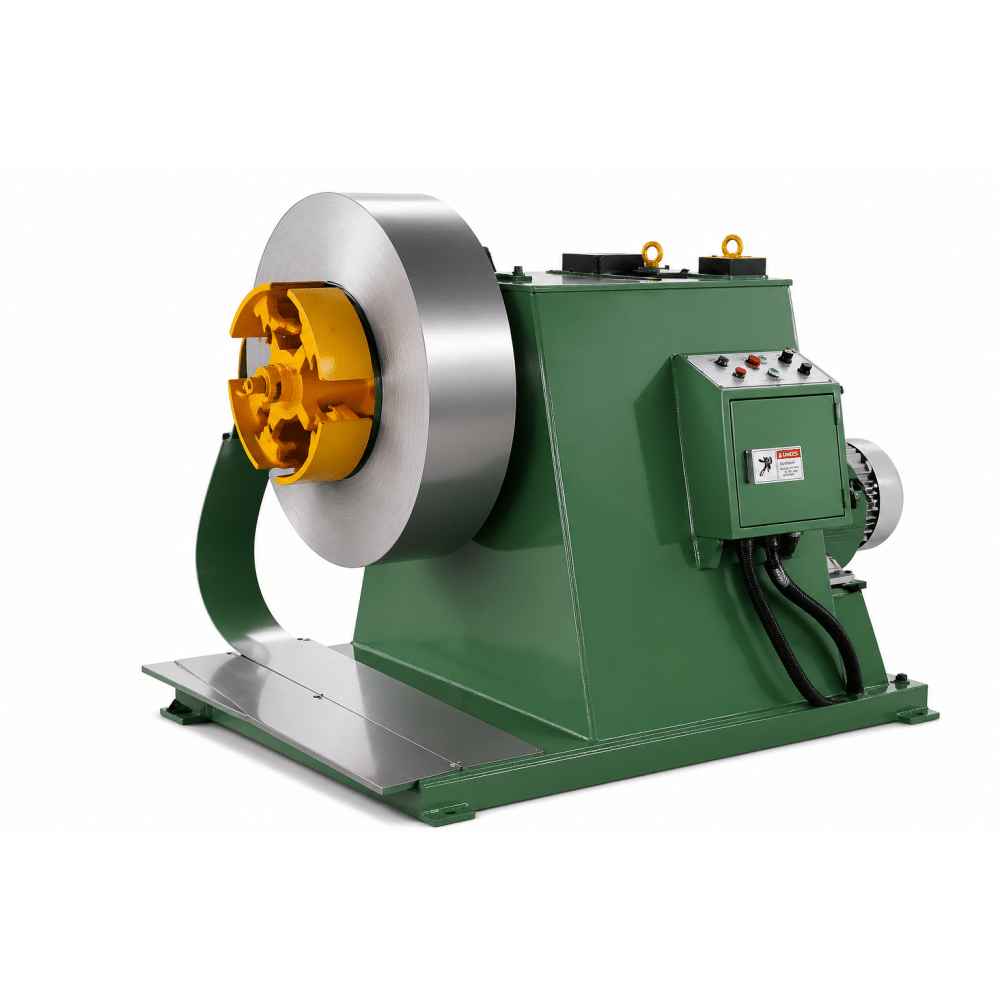

Simplified Coil Loading: Easier coil loading direction reduces setup time and increases efficiency.
Compact Design: Ideal for constrained production environments.
Precision Cutting: Ensures minimal burr and high accuracy.

Applications

Space-Constrained Factories: Perfect for workshops with limited floor space.
Transformer Core Processing: Suitable for narrow-width core strip cutting.
General Transformer Manufacturing: Ideal for general transformer core production lines.

Technical Parameters

Item	XE-LL-300Z	XE-LL-400Z
Cutting Thickness (mm)	0.23-0.35	0.23-0.35
Cutting Width (mm)	40-300	40-300
Cutting Length (mm)	350-2000	350-2000
Feeding Speed (m/min)	180	180
Cutting Burr (mm)	≤0.02	≤0.02
Cutting Length Accuracy (mm)	±0.1	±0.1
Cutting Angle Accuracy (°)	±0.025	±0.025
Total Motor Power (kW)	22	23

FAQ

Q1: When should I choose a side-position cutting line?
A: A side-position cutting line is ideal for factories with limited floor space and for operations requiring simplified coil loading.

Q2: Is it suitable for narrow-width cores?
A: Yes, it is designed for narrow-width core strips, making it perfect for smaller transformer cores.
