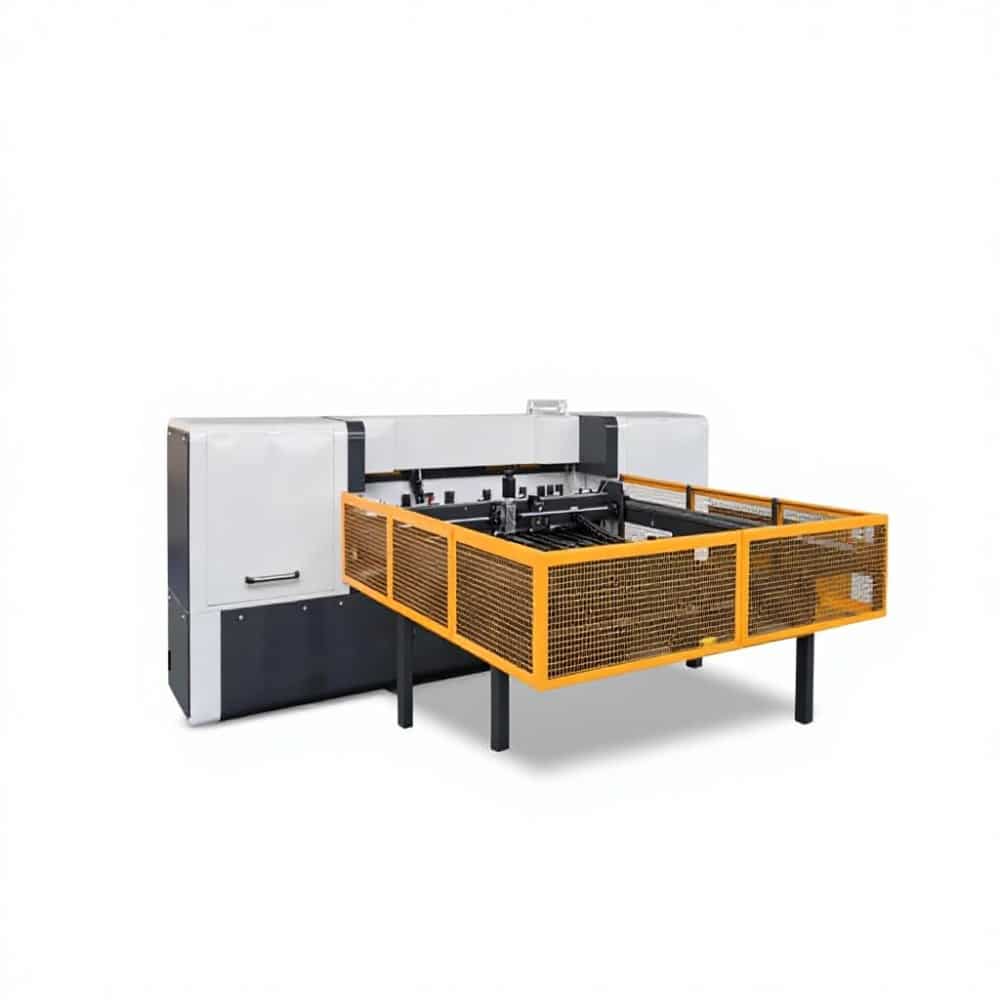

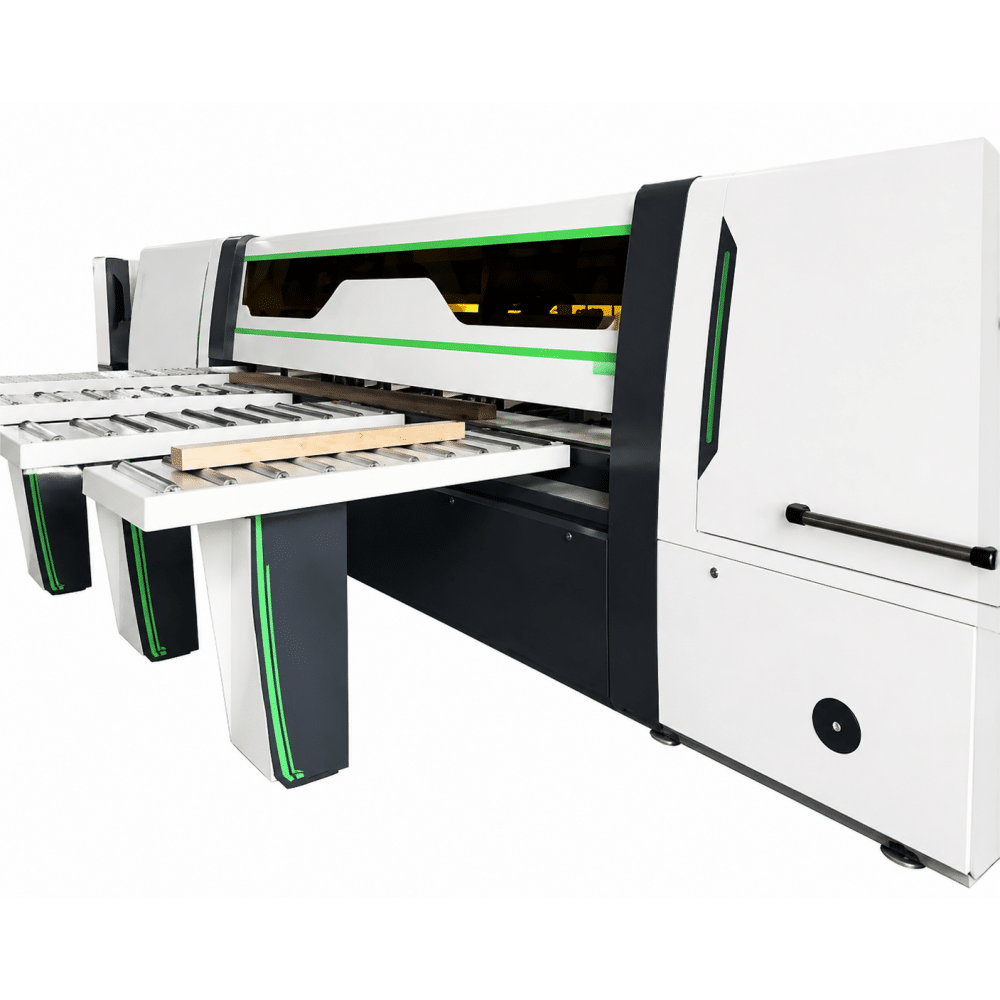

The NC Horizontal Sawing Machine is a high-efficiency solution designed for cutting large insulation boards used in transformer manufacturing. This NC horizontal sawing machine for transformer insulation applications is suitable for processing laminated pressboard and laminated wood boards with high precision and stability.
As a professional CNC horizontal sawing machine, it ensures smooth cutting surfaces, accurate dimensions, and reliable performance in industrial insulation material processing.
This NC horizontal sawing machine is mainly used for processing transformer insulation plates, laminated pressboard, and laminated wooden boards. It is widely applied in insulation board cutting operations, especially for large-size panels required in transformer production.
The machine delivers accurate and consistent cutting performance, making it ideal for insulation board horizontal cutting applications.
Composed of a rigid bed body and advanced sawing system, ensuring stability during high-load cutting operations.
Equipped with feeding and pressing units to secure materials and ensure smooth, precise cutting in industrial CNC sawing processes.
Can process laminated pressboard, pressboard, and laminated wood, widely used in transformer insulation manufacturing.
Includes protective covers and safety mechanisms to ensure safe and reliable operation.
The machine adopts an intelligent control system for easy operation and improved efficiency.
| No. | Item | Data |
| 1 | Max. Sawing length | 3300mm |
| 2 | Max. Sawing width | 3300mm |
| 3 | Max. Sawing height | 120mm |
| 4 | Max. Sawing blade height | 125mm |
| 5 | Min. Sawing size | 50*50mm |
| 6 | Main saw motor | 15kw |
| 7 | Main saw diameter | Φ450mm |
| 8 | Main saw shaft diameter | Φ75mm |
| 9 | Main saw rotating speed | 5000r/min |
| 10 | Second saw power | 2.2kw |
| 11 | Second saw diameter | Φ200mm |
| 12 | Second saw shaft diameter | Φ50mm |
| 13 | Second saw rotating speed | 6000r/min |
| 14 | High pressure blower motor | 5.5kw |
| 15 | Side motor power | 90w |
| 16 | Working air pressure | 6-7kg/cm² |
| 17 | Saw feeding motor power | 3.4kw |
| 18 | Forward speed | 0-120m/min, freely adjustable |
| 19 | Returning speed | 120m/min |
| 20 | Table height over the floor | 980mm |
| 21 | Clamping jaw | 8 |
| 22 | Feeding mode | Front feeding |
| 23 | Voltage | 380V, 50HZ, 3 phase |
| 24 | Machine dimension | 6500*6550*1980mm |
An NC horizontal sawing machine is used to cut large insulation boards and laminated materials with high precision.
It can process laminated pressboard, pressboard, and laminated wood used in transformer manufacturing.
Horizontal sawing ensures stable cutting of large panels and improves dimensional accuracy.
CNC control improves precision, repeatability, and efficiency in industrial cutting operations.
Yes, it is widely used in transformer insulation material processing lines.
The machine includes protective covers and safety systems to ensure operator protection.
