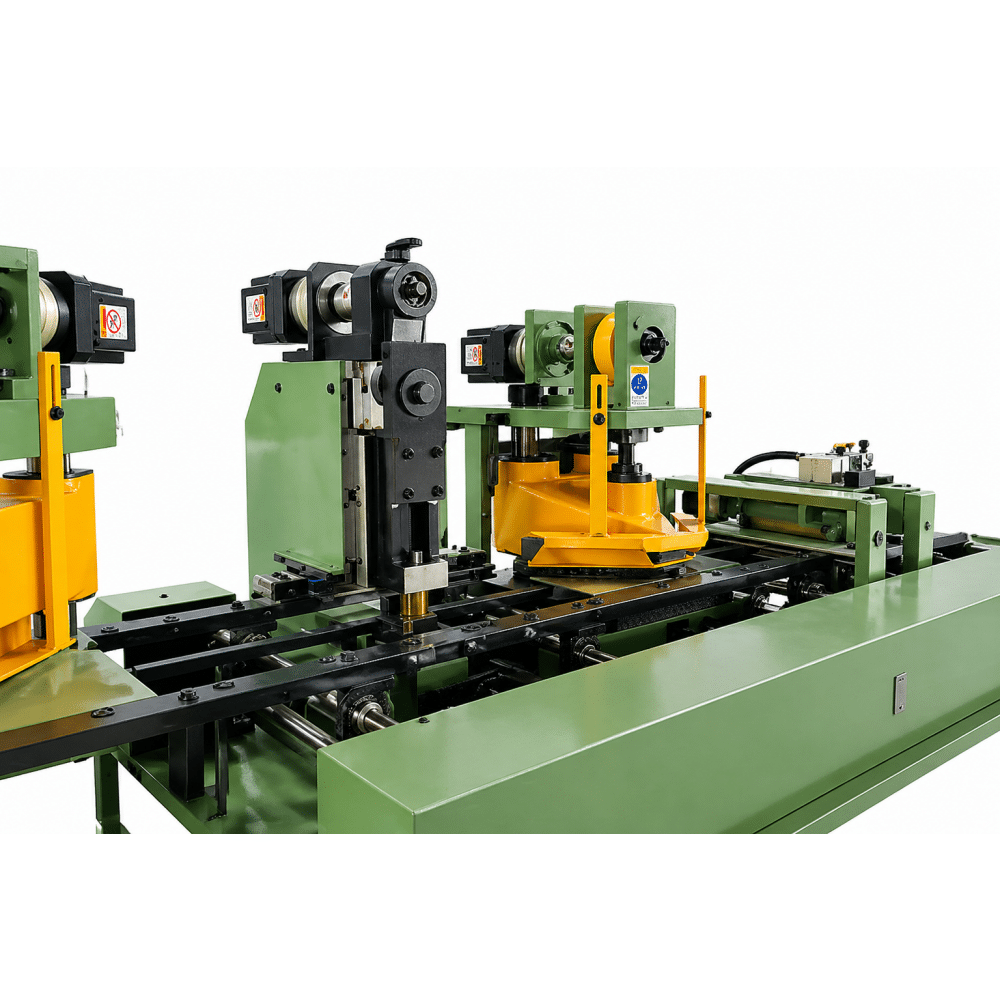

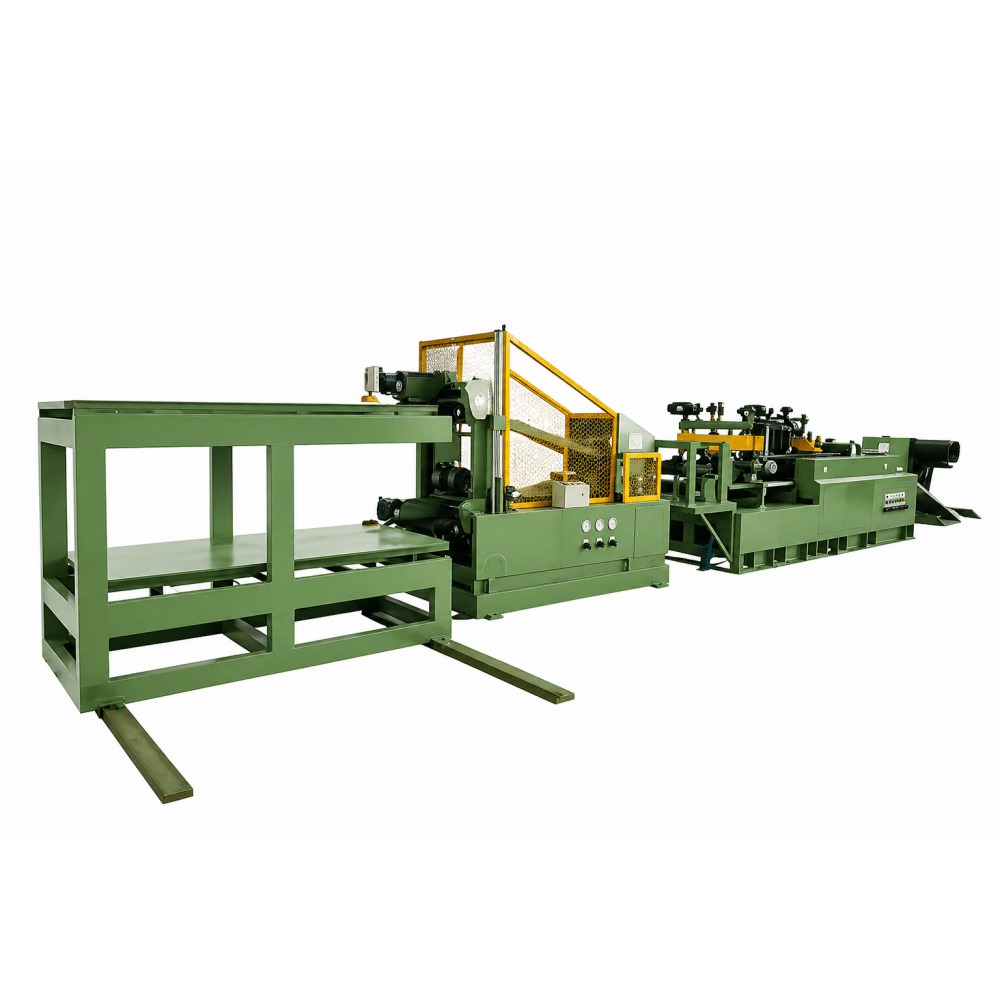

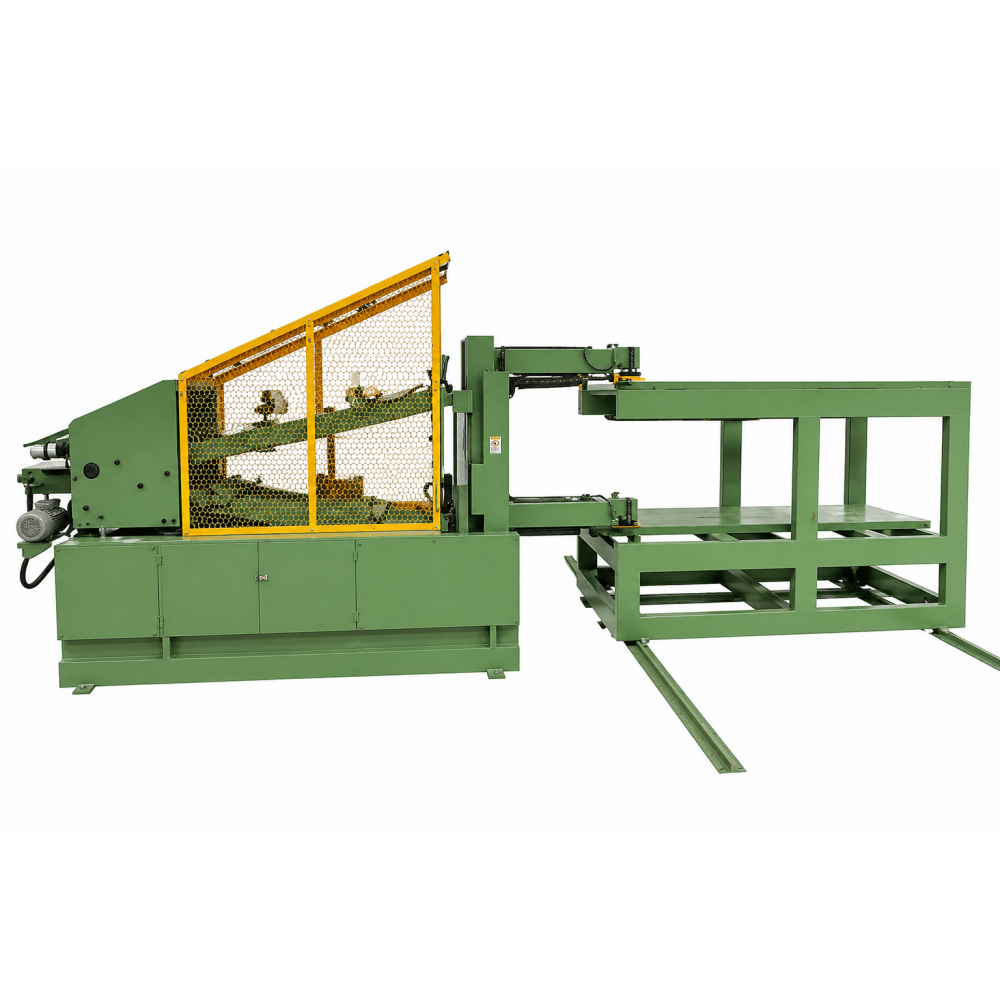

The Center Position Core Cutting Line is an efficient solution designed for precise cutting of silicon steel used in transformer core manufacturing. This model focuses on stability, ease of operation, and cost efficiency, making it ideal for manufacturers seeking reliable and proven production solutions.
Stable Cutting Accuracy: Designed for high precision, ensuring minimal burr and tight tolerances.
Cost-Effective: Ideal for manufacturers seeking a stable, budget-friendly option.
Ease of Operation: Simplified controls and intuitive setup make it easy for operators.
Durability: Built to handle high volumes with minimal maintenance requirements.
| Item | XE-LL-300ZX | XE-LL-400ZX | XE-LL-600ZX |
| Cutting Thickness | 0.18-0.35mm | 0.18-0.35mm | 0.18-0.35mm |
| Cutting Width | 40-300mm | 40-400mm | 60-600mm |
| Cutting Length | 350-2000mm | 350-2500mm | 500-3500mm |
| Feeding Speed | 240m/min | 240m/min | 240m/min |
| Cutting Burr | ≤0.02mm | ≤0.02mm | ≤0.02mm |
| Cutting Length Accuracy | ±0.1mm | ±0.1mm | ±0.1mm |
| Cutting Angle Accuracy | ±0.025° | ±0.025° | ±0.025° |
| Total Motor Power | 22kW | 23kW | 34kW |
Q1: What is a center position core cutting line?
A: A center position core cutting line is designed for precise and stable cutting of transformer cores using a center-positioned structure, ensuring consistent performance and cutting accuracy.
Q2: What types of transformers is it suitable for?
A: It is suitable for general transformer cores, particularly for standard power transformers, making it a versatile solution in transformer manufacturing.
Q3: How accurate is the cutting process?
A: The cutting accuracy is highly precise, with burrs controlled at ≤0.02mm and cutting angle accuracy of ±0.025°.
